1. What is a Bin Rack?

A Bin Rack (or Action Rack) is specifically a display rack system with a unique configuration and style providing a tiered, sloping, visually open shelving and compartmental approach to storage. In summary, it is essentially a wire shelf system with baskets. Space Rescue have Bin Racks for sale in Sydney, Melbourne, Brisbane, Gold Coast, Adelaide and Perth.

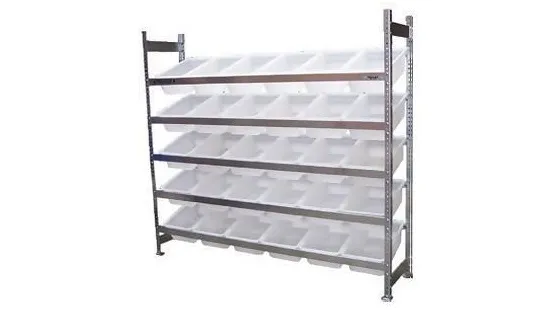

Bin Rack with 5 shelving levels of white Bins

2. Usage

Bin Racking is ideal for an operation requiring both accessibility and visibility of materials. This storage system embodies the Japanese ‘Kanban‘ philosophy as it easy to see when a particular item is low in stock. Storage of either small components, brochures, food or parts is common.


3. Construction of Bin Rack Shelving

A bolted pre-galvanised steel frame provides a rigid frame to carry loads imparted from a series of lift out plastic bins. Furthermore, options include swivel castors to make these units mobile. It is similar to a shelving system where bins replace shelves.

In detail, offsetting the heights of the front and rear bear beams provides a sloping shelving affect.


4. Dimensions for Bin Racking systems

a) Length

1015 mm (Option 1) overall
2022 mm (Option 2) overall

b) Width

450mm frame and also depending on bin size selected

c) Height

1800mm for both length and bin options


5. Sizes of Bins used in Action Rack

[Colours …. bins available in Blue, Red and White]

5 shelf levels of red baskets

a)  430 x 323 x 127 H … hence 13.5 Litres
b)  457 x 318 x 165 H … hence 16 Litres
c)  457 x 318 x 260 H … hence 27 Litres
d)  645 x 413 x 210 H … hence 32 Litres
e)  645 x 413 x 276 H … hence 46 Litres


6. 1015mm Long Configuration of Bin Rack

a)  430 x 323 x 127 H … therefore 13.5 Litres  | 3 bins across x 6 levels high
b) 457 x 318 x 165 H … therefore 16 Litres  |  3 bins across x 5 levels high
c) 457 x 318 x 260 H … therefore 27 Litres  |  3 bins across x 5 levels high


7. 2022mm Long Configuration of Bin Rack

a) 430 x 323 x 127 H … thus 13.5 Litres  | 6 bins across x 6 levels high
b) 457 x 318 x 165 H … thus 16 Litres  |  6 bins across x 5 levels high
c) 457 x 318 x 260 H … thus 27 Litres  |  6 bins across x 5 levels high
d) 645 x 413 x 210 H … thus 32 Litres  |  3 bins across x 4 levels high
e) 645 x 413 x 276 H … thus 46 Litres  |  3 bins across x 4 levels high


8. Applications for Bin Rack Shelving

Storage Bin Racks are the ideal solution for small parts storage or food storage in …

  • Workshops
  • Factories
  • Kitchens
  • Retail
  • Hospitality
  • Storerooms

9. Availability of Wire Shelf with Baskets

Space Rescue have both Bin and Wire Shelf with Baskets for sale on relatively short lead-times.


10. Similar types of product to Bin Rack

Similar styles of storage may be found in either of our Longspan Shelving, Steel Workbench or Steel Shelving pages.
